PA66 EC Backward Centrifugal Blower Fan With Fresh Air System 190 Mm High Volume

Name: PA66 EC Backward Centrifugal Blower Fan With Fresh Air System 190 Mm High Volume
Brand: OFAN
Price: 1 USD

Cheap PA66 EC Backward Centrifugal Blower Fan With Fresh Air System 190 Mm High Volume for sale

Brand Name : OFAN

Model Number : LD190C-23D03-00

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : negotiation

Supply Ability : 10000pcs

Packaging Details : 600*600*50

Nominal voltage : 220VAC

Speed : 3570pm

Power input : 100W

Current draw : 0.76A

Air Flow : 760m³/h

Sound pressure level : 78db

Name : quiet centrifugal fan

Contact Now

Pa66 Ec Backward Centrifugal Blower With Fresh Air System For Ld190c-230d3-00

Key Specifications/Special Features:

Type	LD190C-230D3-00
Nominal voltage	230VAC
Speed	3570RPM
Power input	100W
Current draw	0.76A
Air Flow	760m³/h
Sound pressure level	78dB

Noise-optimized air outlet in scroll housing.
Pressure-optimized blower
shaded pole motor
Impedance protected.

Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control

Features:

Size: 190mm diameter X 63mm
Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
Fully integrated electronic commutation.
Protect against reverse polarity and locking.
Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.

PA66 EC Backward Centrifugal Blower Fan With Fresh Air System 190 Mm High Volume

Product Tags:

centrifugal backward curved fan

backward curved blower

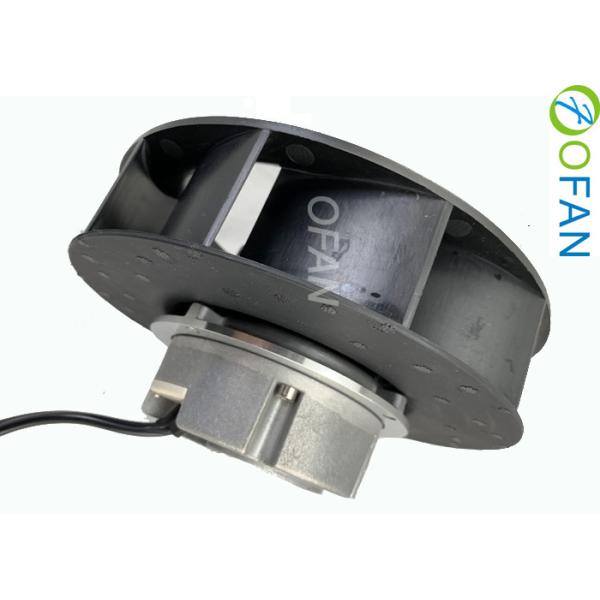

PA66 EC Backward Centrifugal Blower Fan With Fresh Air System 190 Mm High Volume Images
